OPTIMAX 80X
.webp)
The pinnacle in high performance precision abrasive waterjet machining, the OMAX OptiMAX® JetMachining Center® is the culmination of three decades of engineering expertise and experience. With Industry leading cutting speeds and precision, the OptiMAX is the world’s most accurate waterjet designed for maximum uptime in any manufacturing environment. The OptiMAX's environmentally friendly technology cuts more with less while the intelligent software maximizes overall productivity.

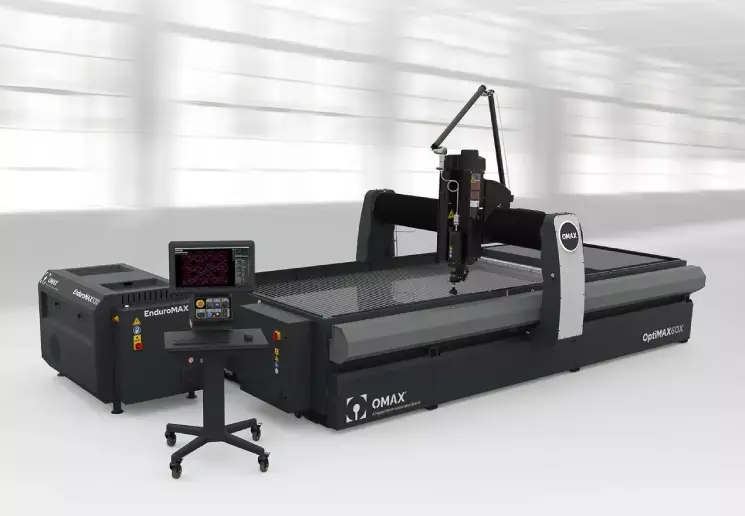

The OMAX OptiMAX 60X is the culmination of three decades of engineering expertise and experience, resulting in the world’s most advanced waterjet.
| 80X | 80X-1 | |
|---|---|---|
| Footprint (with pump & controller) | 26' x 12' 11" (7.92 m x 3.94 m) | 32'8" x 12'11" (9.96m x 3.94m) |
| Height (with Scissor plumbing) | 10' (3.05 m) | 10' (3.05 m) |
| Operating Weight | 49,575 lb (22,487 kg) | 65,900 lb (6.09m x 2.03m) |
| Weight (tank empty) | 9,150 lb (4,150 kg) | 9,150 lb (4,150 kg) |
| X-Y Cutting Travel* | 13' 4" x 6' 8" (4.06 m x 2,03 m) | 20'0" x 6'8" (4.06 m x 2,03 m) |
| Z-Axis Travel (with Motorized Z Axis)* | 12" (304 mm) | 12" (304 mm) |
| Table Size | 15' 1" x 7' 2" (4.60 m x 2.18 m) | 21'9" x 7'2" (6.63m x 2.18m) |
| Material Supports Slats | 4" x 1/8" Galvanized Steel |
|---|---|
| Maximum Supported Material Load | 400 lbs/sq ft (1,950 kg/sq meter) |
| Electrical Requirements | 3-Phase, 380-480 VAC ±10%, 50-60 Hz |
| Noise Level | Below 80 dBA at one meter for submerged cutting |
| Speed | 350 in/min (8.89 m/min) |
| Linear Positional Accuracy* | ±0.001" (±0.025 mm) |
| Repeatability* | ±0.001" (±0.025 mm) |
| Ballbar Circularity* | ±0.003" (±0.076 mm) |
Standard Features
- Backed by our exclusive IntelliMAX Premium Software
- Exclusive IntelliTRAX abrasive jet linear drive system provides 350 in/min (8.9 m/min) traverse with real-time closed-loop positioning feedback
- 12-inch (305 mm) programmable Z axis travel with lowest ceiling height requirement design in the industry.
- Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
OMAX Benefits
- Designed and manufactured at the OMAX factory in Kent, Washington, USA
- Does not create heat-affected zones or mechanical stresses
- Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
- No tool changes & minimal fixturing dramatically reduce setup
Service & Training
- Unlimited free training for the life of your machine
- Unlimited software upgrades for the life of the machine
- 2-year / 4000-hour limited warranty
- 3 days of onsite training upon installation
