VALGRO SAMARTH EDGE BREAKER SERIES END EDGE + DEBURRING MACHINE

 VALGRO SAMARTH EDGE BREAKER SERIES END EDGE + DEBURRING MACHINE

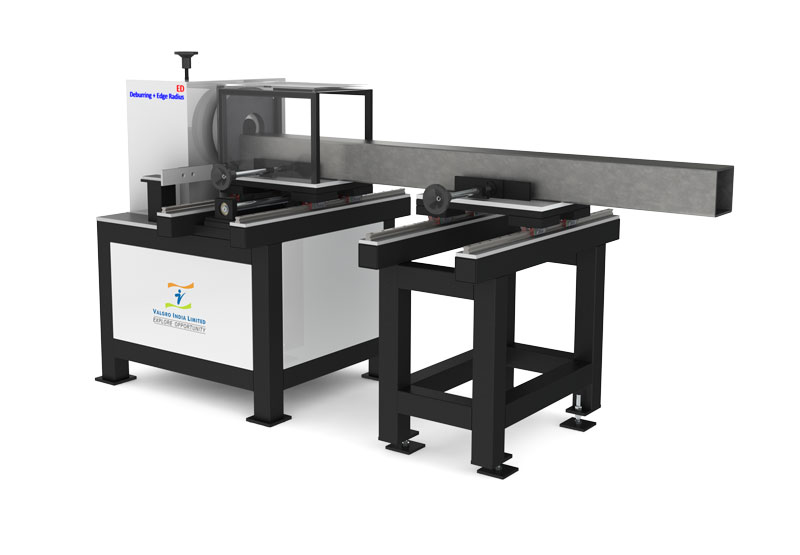

VALGRO-SAMARTH – Edge Breaker Series END EDGE Deburring Machine is designed to remove metal burrs and shear cut edge from ends of pipes, tubes, and profiles. Its single head semi-automatic end edge deburring system helps you to easily activate clamping mechanism. Its automatic clamp shell hood provides additional safety from dust. It drives variable speed with a 2 HP motor attached to 12inches or 14inches Valgro disc deburring brush.

Model
EED14-M
EED14 A
EED14BE
Head Type
Wheel / Disc
Wheel / Disc
Wheel / Disc
Work Surface
End Edge
End Edge
End Edge
Work Head
1
1
1
Process: Wet / Dry
Dry
Dry
Dry
Application
Burr Removal Inside + Outside
Finish Achieved
Smooth Edge
Smooth Edge
Smooth Edge
Burr Classification
Class 1 & 2
Class 1 & 2
Class 1 & 2
Type of Material
Cut Part
Max Dia
100
100
100
Min. Length
200
200
200-600
Brush Diameter
300 / 350
300 / 350
300 / 350
Brush Action
Rotate / Oscilate
R
R + O
R + O
Conveyor Type
R=Roller / B=Belt
Manual
Belt
Belt
Conveyor Speed
Min / Max - MPM
Manual Feed
0.5 - 10
0.5 - 10
Dust Extraction:
Valgro-Dusklean
DCS-1
DCS-3
DCS-5
Electrical parameters
The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection.
  • Pneumatic brush head movement
  • Multiple disc brushes with 12 and 14 inches
  • 2HP motor and variable speed drive
  • Custom clamping for adjusting lengths
  • Three to four cycles per minute
  • Compatible with table extension
  • Brush diameter can range up to 400mm
  • Full cover boy for dust protection
  • Dust collection unit: DS3
  • Table movement length can range up to 600mm
  • Aluminum extrusions saw cut profile for automotive, aerospace, building construction, and medical device industries.
  • Cut Tube, Pipe deburring
  • Valgro Abrasive nylon brushes are an excellent tool for deburring and Edge Radiusing
