SLTL Optibend Press Brake
One of the best solutions developed by Laser Experts is NEO, which is crafted to settle in any environment and start operation in seconds. NEO laser marking machine can cover a broad range of application areas and it is adaptable to work on many materials with promptness and precision. Be it large factories, medium enterprises or small-scale units, our supreme fiber laser marking machine Neo is a perfect match for all of them, integration in the entire system is easy due to its comprehensive interfaces. These lasers can cover a broad range of application areas. With an ultrafine marking impression for metal, non-metal marking Neo can incredibly imprint over smaller to larger components.
| Model | PBO 1030 | PBO 1040 | PBO 1630 | PBO 1640 | PBO 2030 | PBO 2040 |
|---|---|---|---|---|---|---|
| Maximum Tonnage | 100 | 100 | 160 | 160 | 200 | 200 |
| Table length (Working length) | 90 × 3100 | 90 × 4100 | 90 × 3100 | 90 × 4100 | 90 × 3100 | 90 × 4100 |
| Working height (mm) | 900 | 900 | 900 | 900 | 900 | 900 |
| Open Daylight (mm) | 350 | 350 | 410 | 410 | 410 | 410 |
| Close Daylight (mm) | 200 | 200 | 210 | 210 | 210 | 210 |
| Ram Stroke (mm) | 150 | 150 | 200 | 200 | 200 | 200 |
| Bending Capacity in M.S. | 4 × 3000 | 3 × 4000 | 6 × 3000 | 5 × 4000 | 8 × 3000 | 6 × 4000 |
| Ram Speed (mm/sec) | ||||||
| Approach | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing | 7 | 7 | 7 | 7 | 6 | 6 |
| Return | 80 | 80 | 80 | 80 | 80 | 80 |
| Throat Depth(mm) | 200 | 200 | 300 | 300 | 300 | 300 |
| Oil capacity (litre) | 300 | 300 | 500 | 500 | 500 | 500 |
| Motor HP | 10 | 10 | 15 | 15 | 20 | 20 |

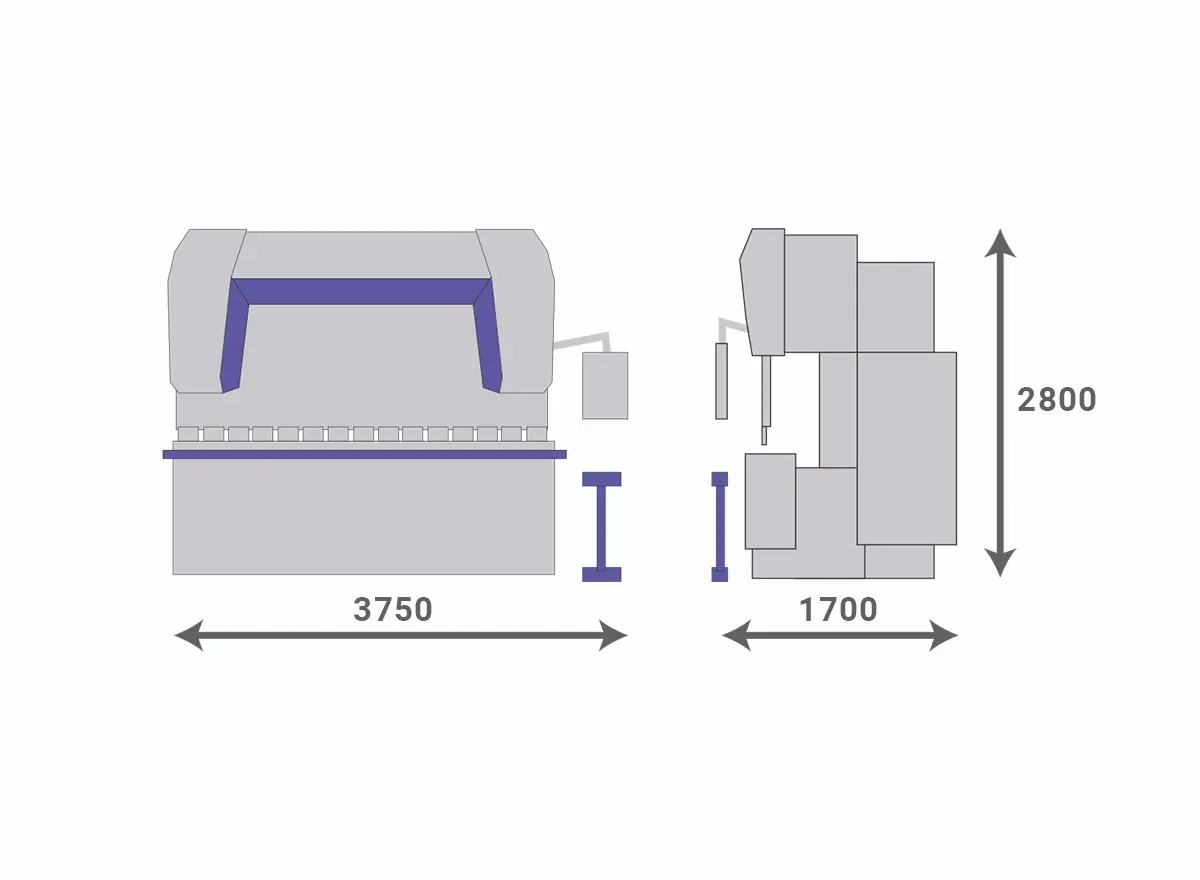

| Overall Dimension (mm) | ||||||
| Length A | 3750 | 4750 | 3750 | 4800 | 3800 | 4800 |
| Width B | 1700 | 1850 | 1800 | 1900 | 1900 | 2000 |
| Height C | 2800 | 3000 | 2900 | 3200 | 3000 | 3250 |
| Machine Weight (Kg.) | 5700 | 7000 | 6500 | 7600 | 7500 | 8500 |
| Controller- Delem DA 56S | YES | YES | YES | YES | YES | YES |

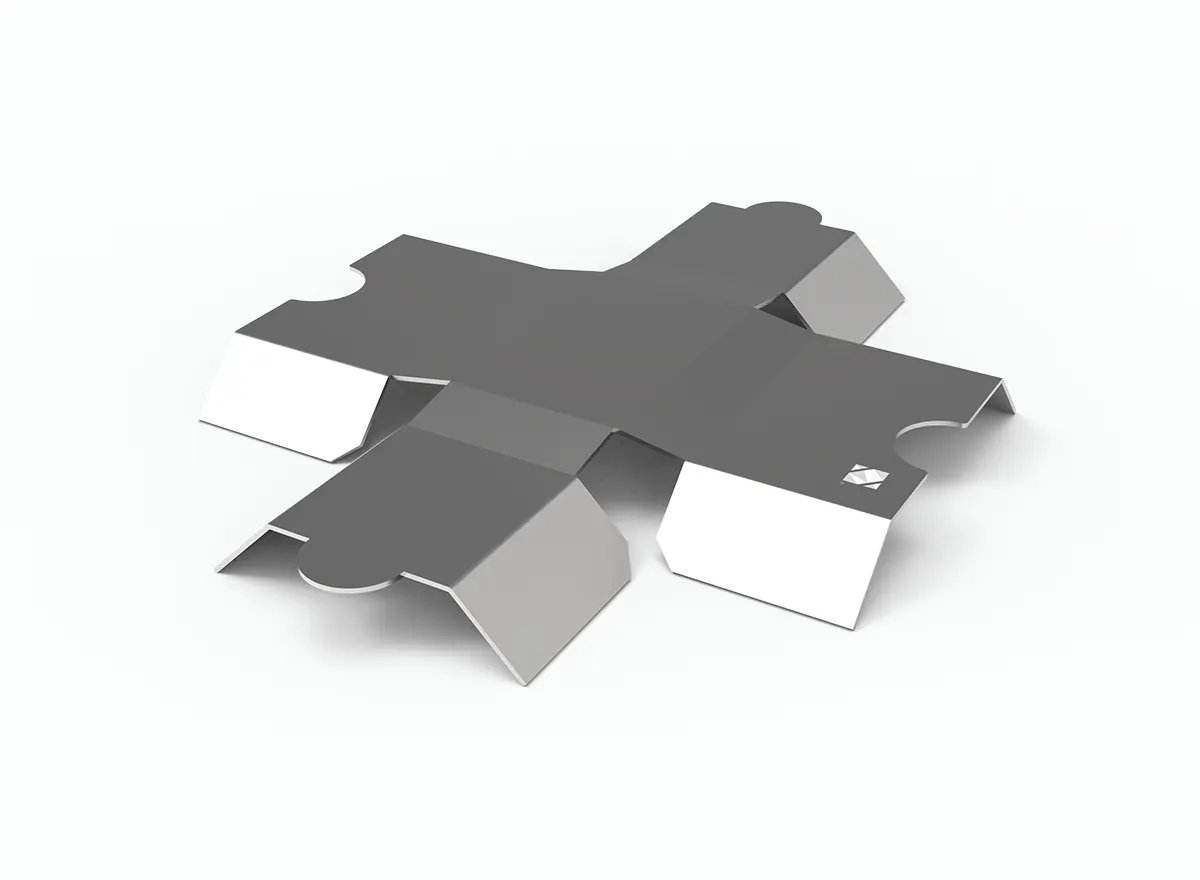

Precise bending
With high process accuracy, the machine gives perfect bending to the material and gives the exact shape as required. It works well even on larger components giving a perfect edge.

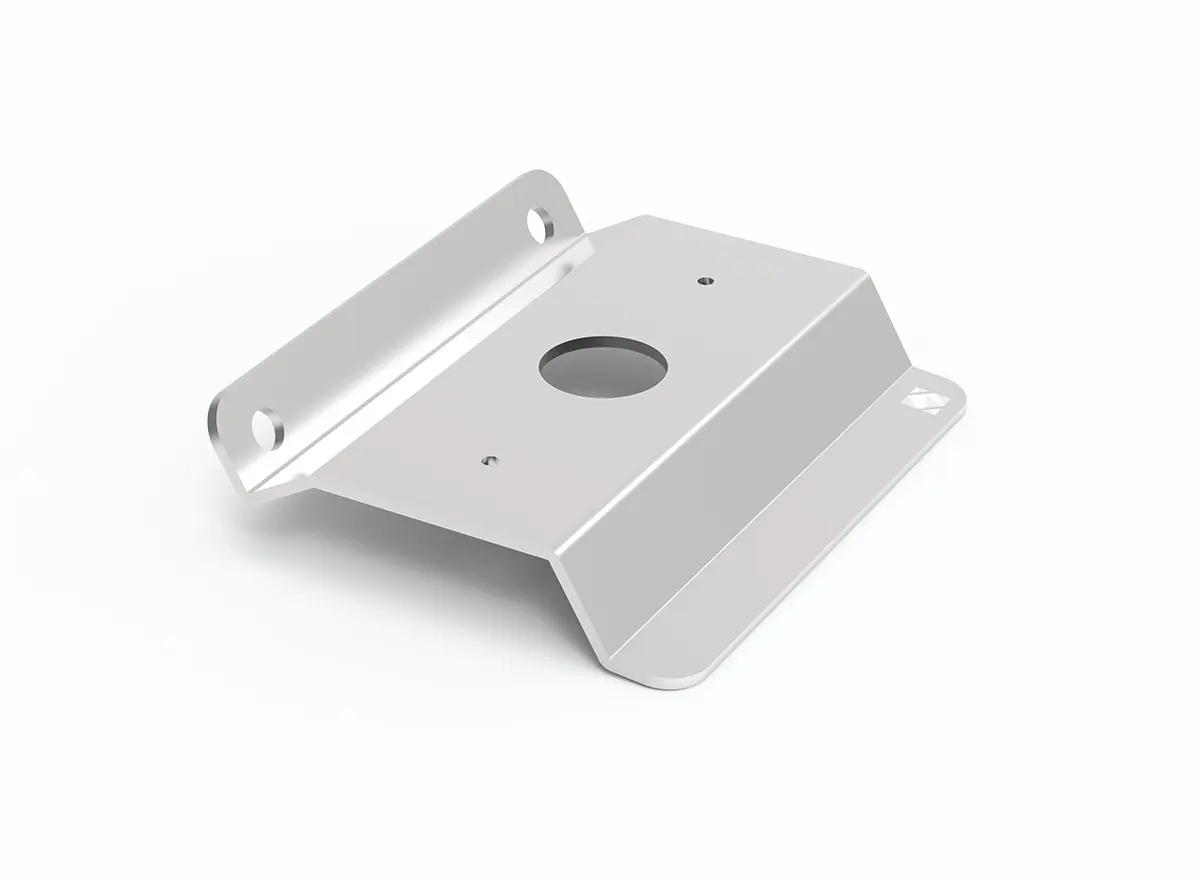

High Quality Bends
With Conical and radius bending processes it gives perfect angle to material.The bending machine is fitted with a clamping system, which holds the plate in position for better accuracy giving quality outcomes.

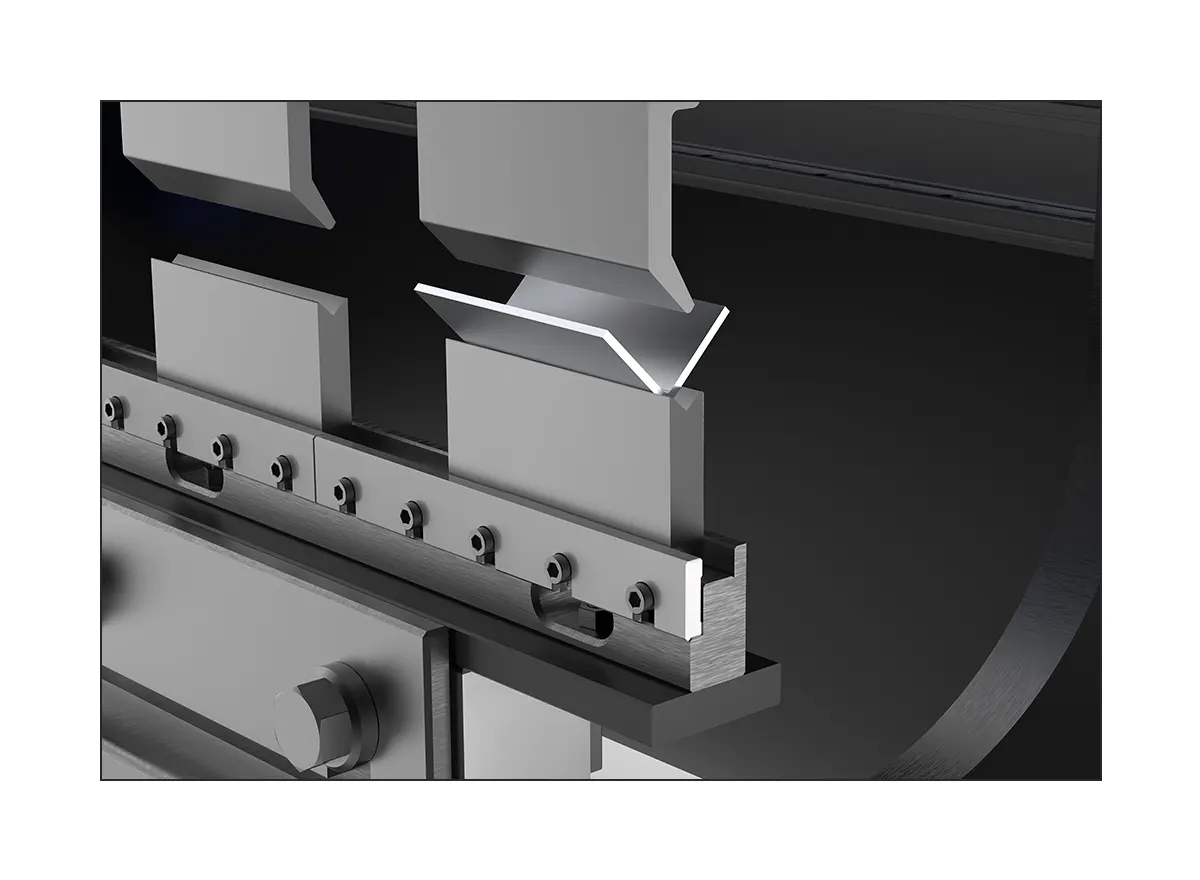

Automation Concept
The automation mechanism helps in very easy operation and proves to be a less labour-intensive machine. The machine can be simply operated as it is exceptionally easy to understand and have a profoundly great controlling framework.
Efficient and Inexpensive
These excellent machines for bending metal save time with the most advanced structures, as a great deal of time is consumed when metal bending is done manually. Therefore, metal bending machines encourage the company to process more components within less time resulting in less overhead costs.
Modern Design with Effortless Function
With the help of OptiBend, all the required parts can be effortlessly modified and quickly manufactured by semi-skilled operators. Considerably the generic functions and programming procedures of the machine can be learned and practically implemented for the most effective results in lesser time.
