SLTL SLF SOLAR CELL CUTTING

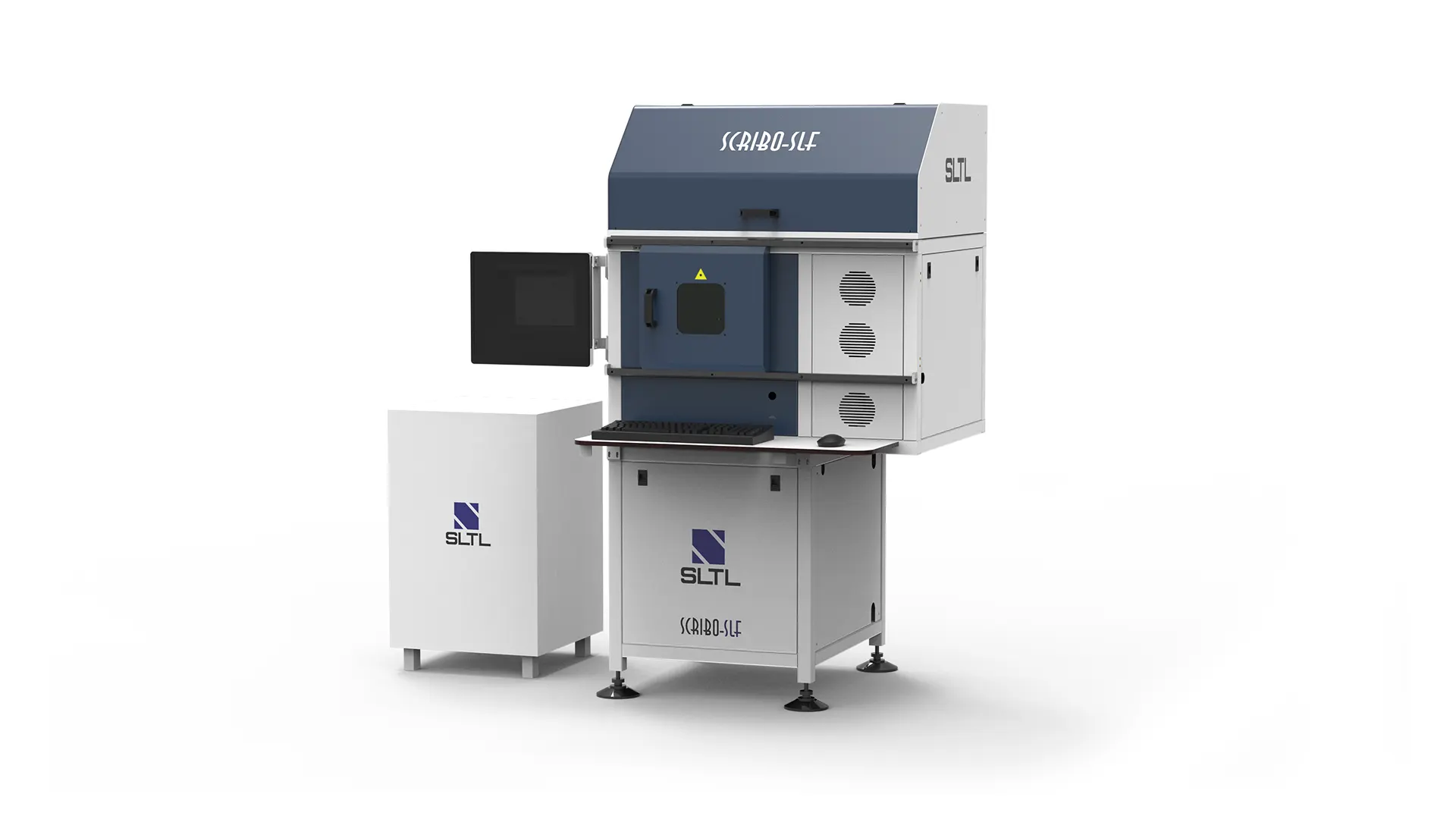

SLTL SLF Solar Cell Cutting Machine

SLTL introduced a state of art laser solution for solar cell scribing & cutting with a more stable performance. The machine features the latest technology support so as to provide lasting work support by SLF for new generation High Power Laser Cutting machines, for precise solar cell metal cutting. The SCSS has two variations based on beam generation and transmission- Fiber Lasers and Diode Lasers. Further, these laser scribing-dicing machines find use in the photovoltaic industry where these are used for scribing polycrystalline and monocrystalline silicon wafers, and non-crystalline silicon solar cells. Its structural construction is rigid and heavy for vibration-free and high-accuracy scribing & cutting applications.

Model SCRIBO-SLF
LaserFiber Laser
Frame DesignCompact
Laser Wavelength1064nm
Transverse ModeTEMoo
Beam QualityM² < 1.8
Average Power20 W / 30 W / 50 W
Resolution1 micron
Line width< 30 micron
Repeatability≤3 micron
Max. Scribing Speed200* mm / sec
Laser Repetition Freq.20 KHz to 80 KHz
Axis175 x 175 mm / 312 x 312 mm
ControllerPC Based
CoolingAir Cooled
Dimension1300 x 1125 x 1450 mm
Connected Lode230 V / 50 Hz, 0.46 kW
CameraIn-Built
Z AxisManual
SoftwareDedicated software for solar cell cutting application
Stable and automated continuous process

Automation in the Solar cell cutting machine has changed the scenario of the production industry. The machine is very stable, utilizes very low electricity, and automatically processes the solar cell metal chips which have made it possible to have an uninterrupted production flow.

Precise cut operations

The Solar Cell Cutting machine executes the operation in the fluidic way and allow the cells to get perfectly cut at exactly required measurements.

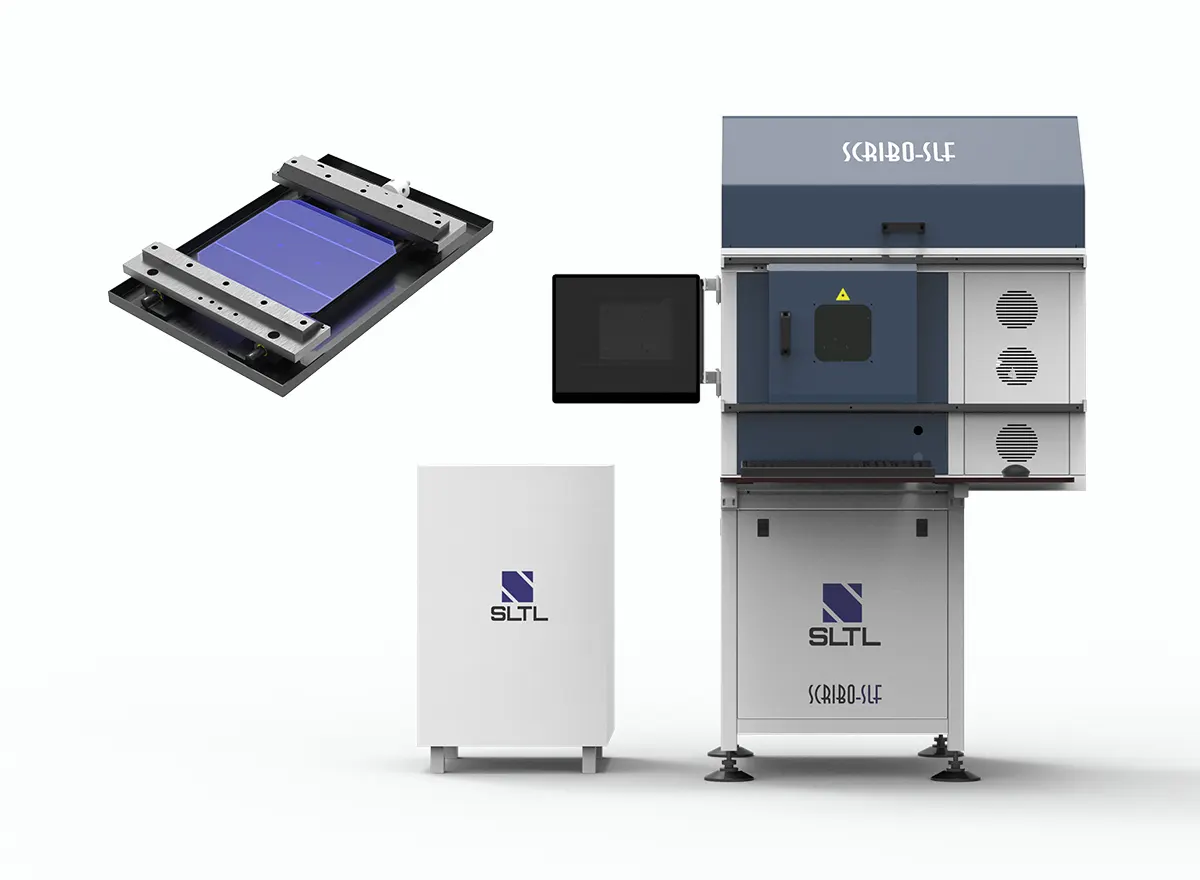

Strong and easy structure for industrial applications

The structural construction of the machine is rigid and vibration-free and effective for cutting applications. The machine also includes vacuum plates, which do not have any potential for errors in solar cell breakdown.

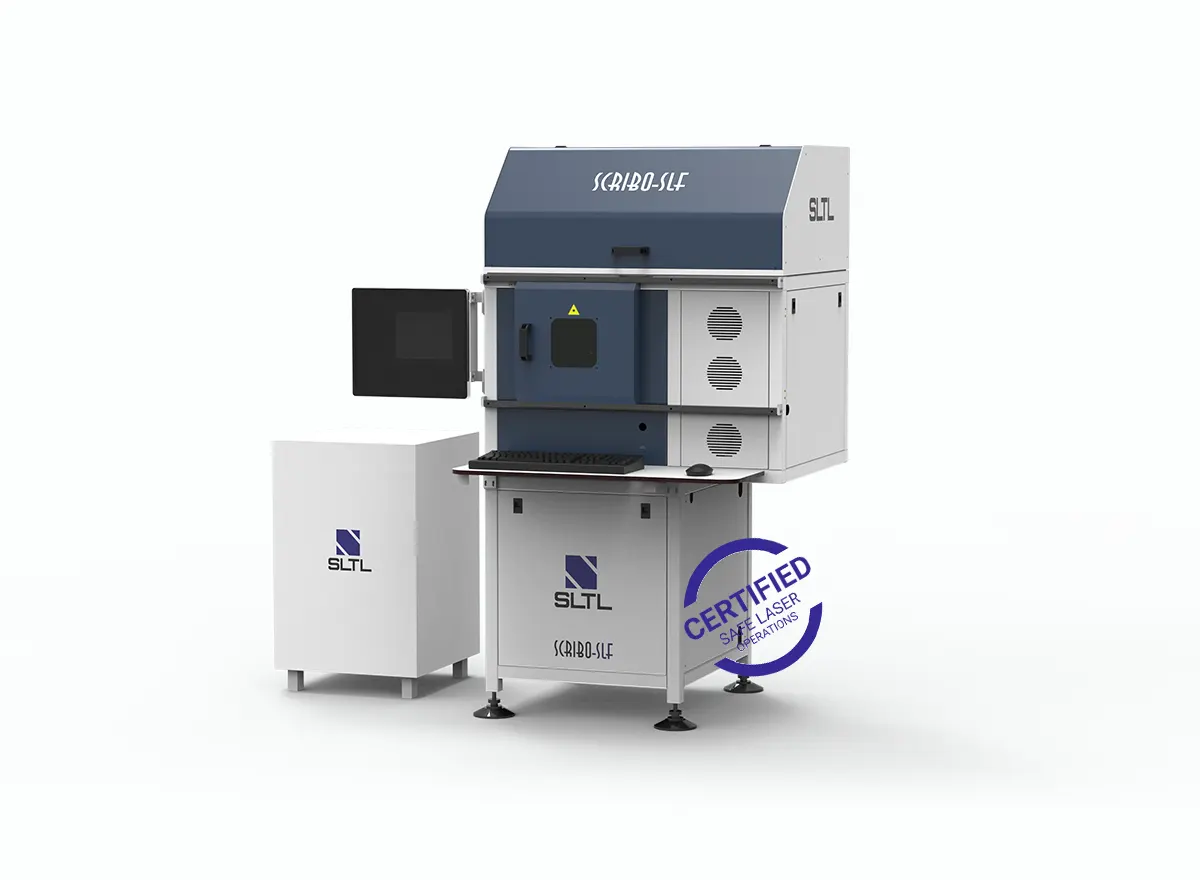

Focus on safety

Extreme safety standards are considered while making this machine to eliminate hazardous situations at facilities and keep the machine operators as safe and secure as possible.

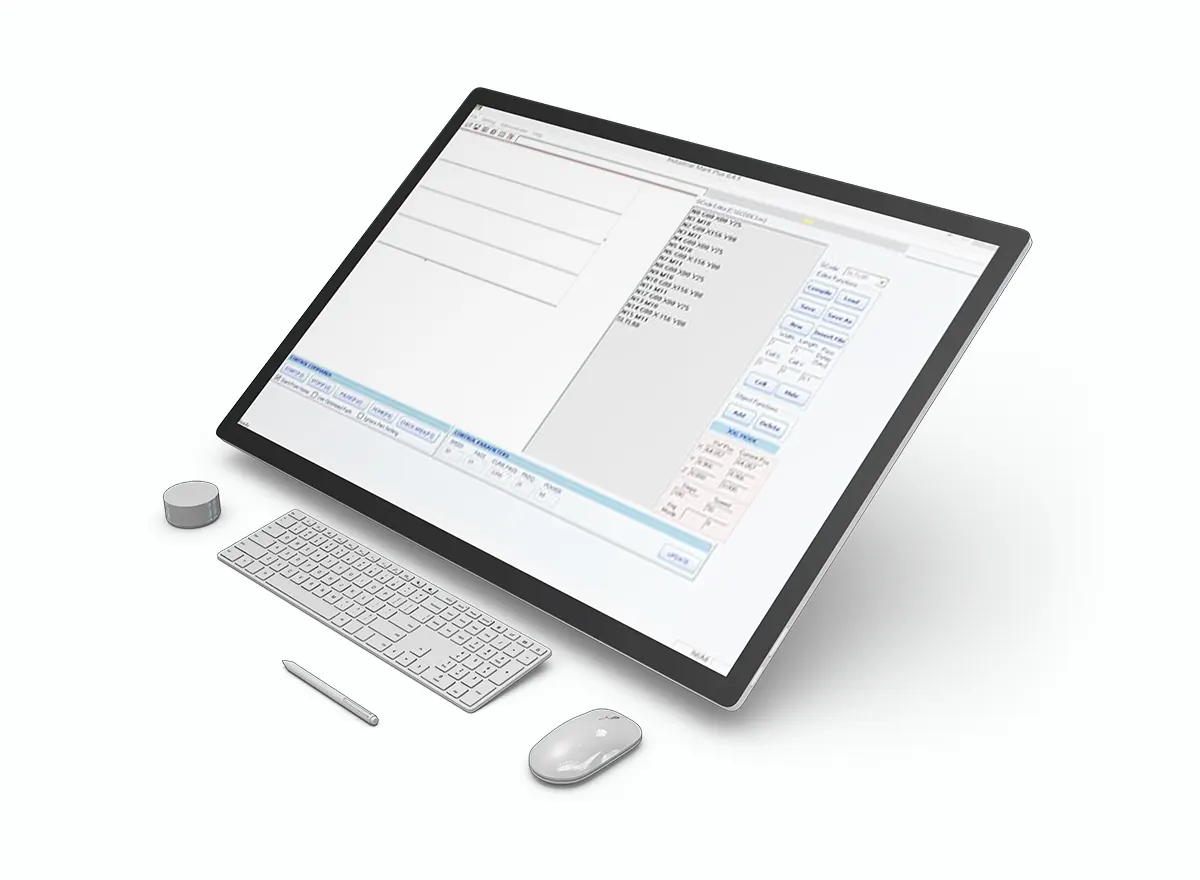

User-friendly control software

With the proficient machine, it has also the most user-friendly operating system designed for laser scribing machines, a real-time display to write paths in an in-built camera.
