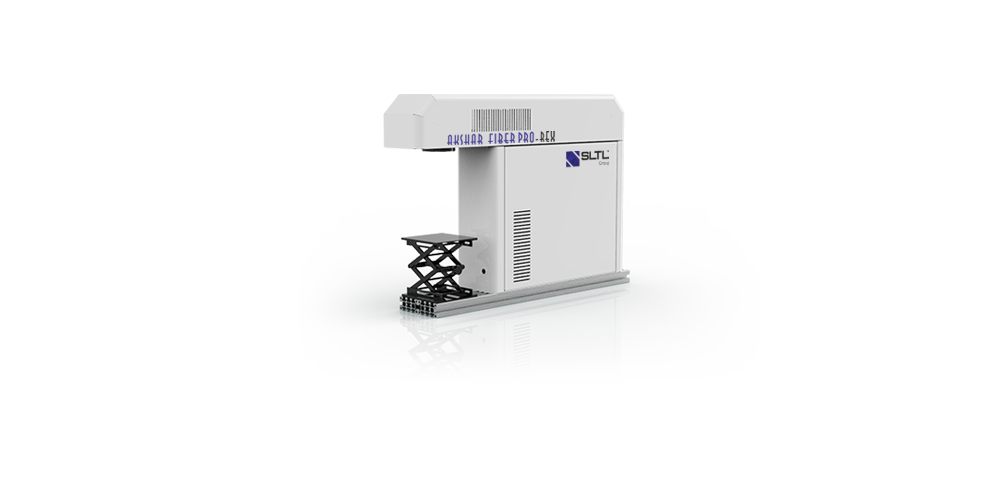

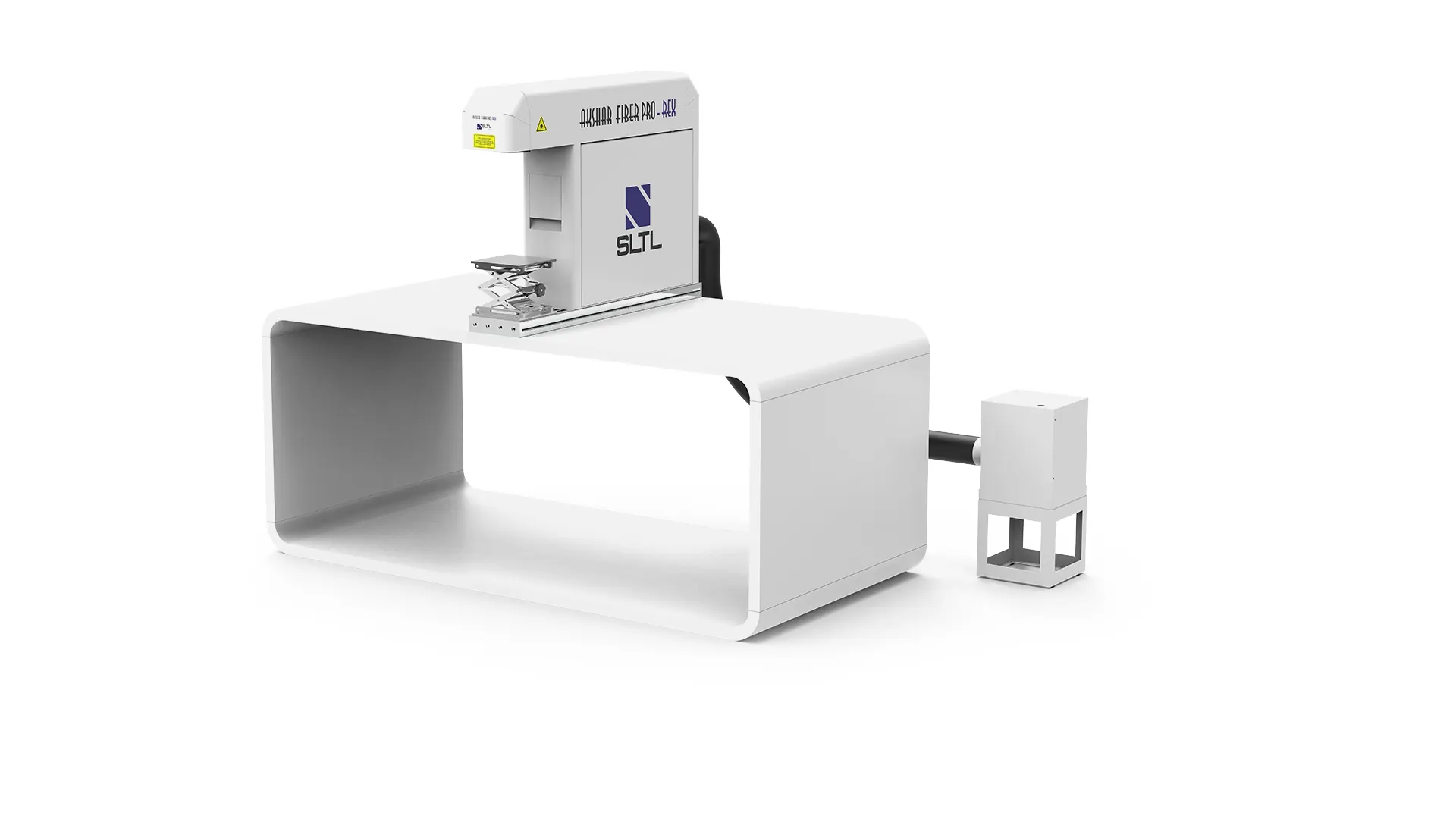

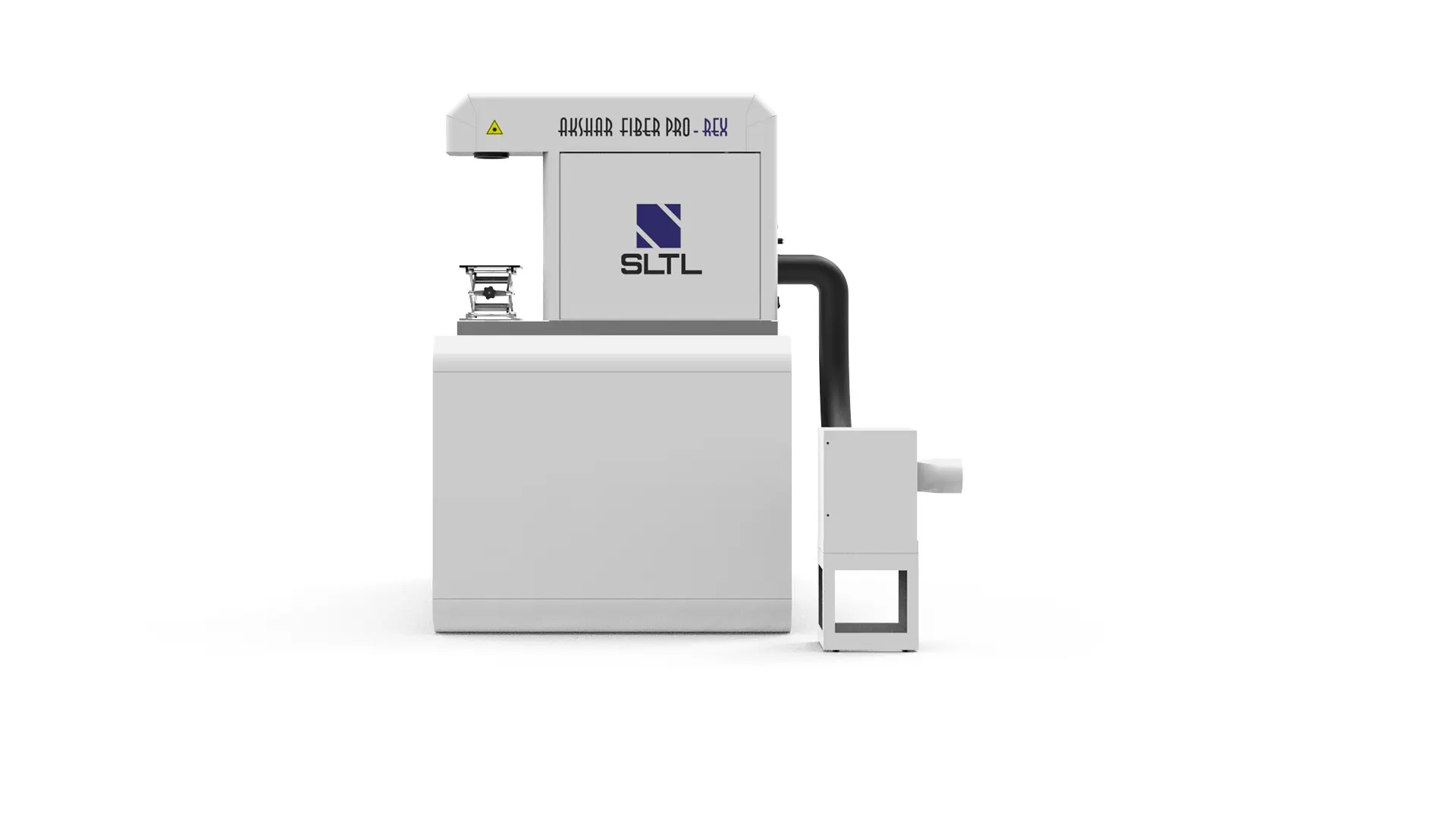

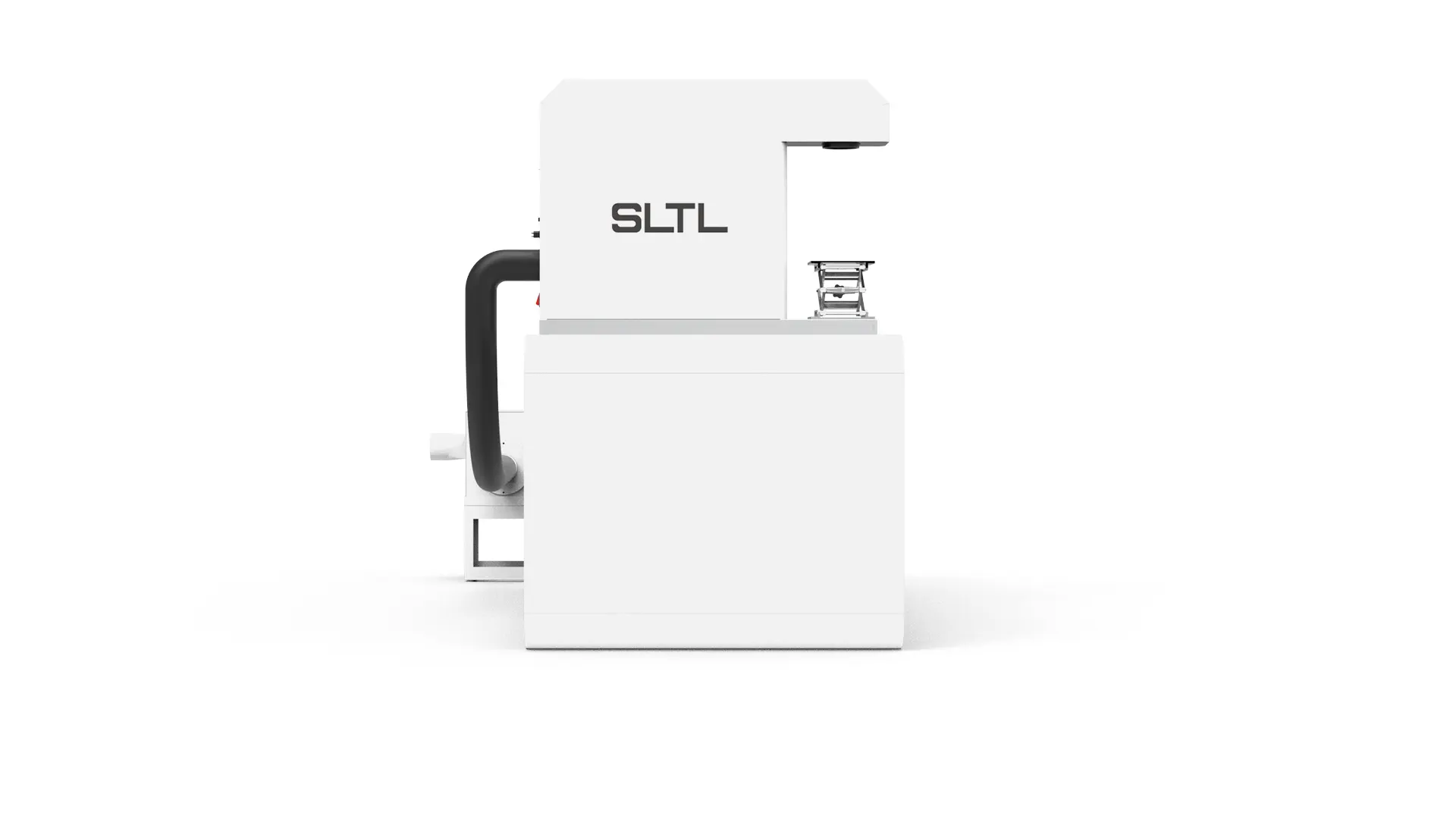

SLTL REX FIBER MARKING & ENGRAVING

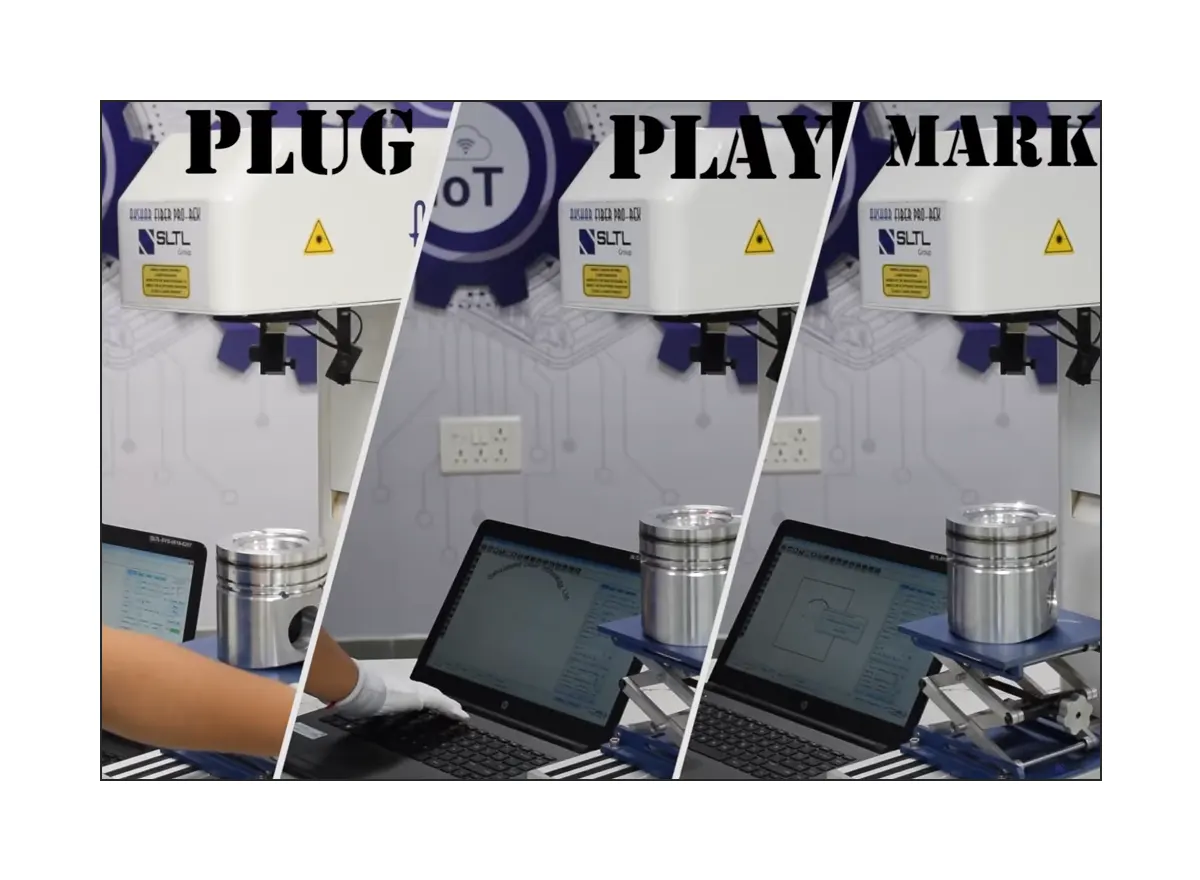

This machine is crafted to settle in any environment and easy to start & use the operation. The adaptability of REX enables it to work over many materials with promptness and precision. REX outperforms with its high-speed engraving and marking operations. Be it large factories, medium enterprises or small-scale unit, our supreme laser marking machine Rex is the perfect match for all of them.  Rex is equipped with Intuitive and user-friendly software. REX is can perform numerous applications such as Marking serial number, text, barcode, logo, circular, etc. Specialist for medical technology With the REX Marking, you can mark implants and surgical instruments in a corrosion-resistant way.

Laser Power
20 Watt | 30 Watt | 50 Watt

Marking Laser
λ = 1064nm laser ; Class 4 Fiber Laser

Guide laser / pointer
Red semiconductor Laser λ = 655nm ; Class 2 Laser

Scan speed
12,000 mm / second

Repeatability
≤ 80 Micron

File format for logo data
DXF, BMP, JPEG, HPGL - PLT

Marking shape
Linear, proportional, monospaced, arced

Character types
English uppercase and lowercase letters, numerals, symbols, user-registered characters

Barcodes
Standard Codes, Pharma Code, Code 39, Code 128, ITF, NW-7, UPC, etc…..

2D codes
QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix, HIBC Code, etc…..

Communication Ports
USB

Marking condition
Static

Cooling method
Forced air cooling

Power supply
180 to 264V AC, 50 / 60Hz ( Single Phase)

Power consumption
20 Watt - 145 W | 30 Watt - 180 W |50 Watt - 240 W|  (240V AC)

Ambient temperature
0 to +40°C (controller, head). No dew condensation or icing allowed.

Ambient humidity
35% to 85% RH (controller, head). No dew condensation or icing allowed.

Protective structure
IP 51

Operating System (Sold Seperately)
Window 7 / Window 8 / Window 10 Professional

Computer System
Desktop \ Laptop

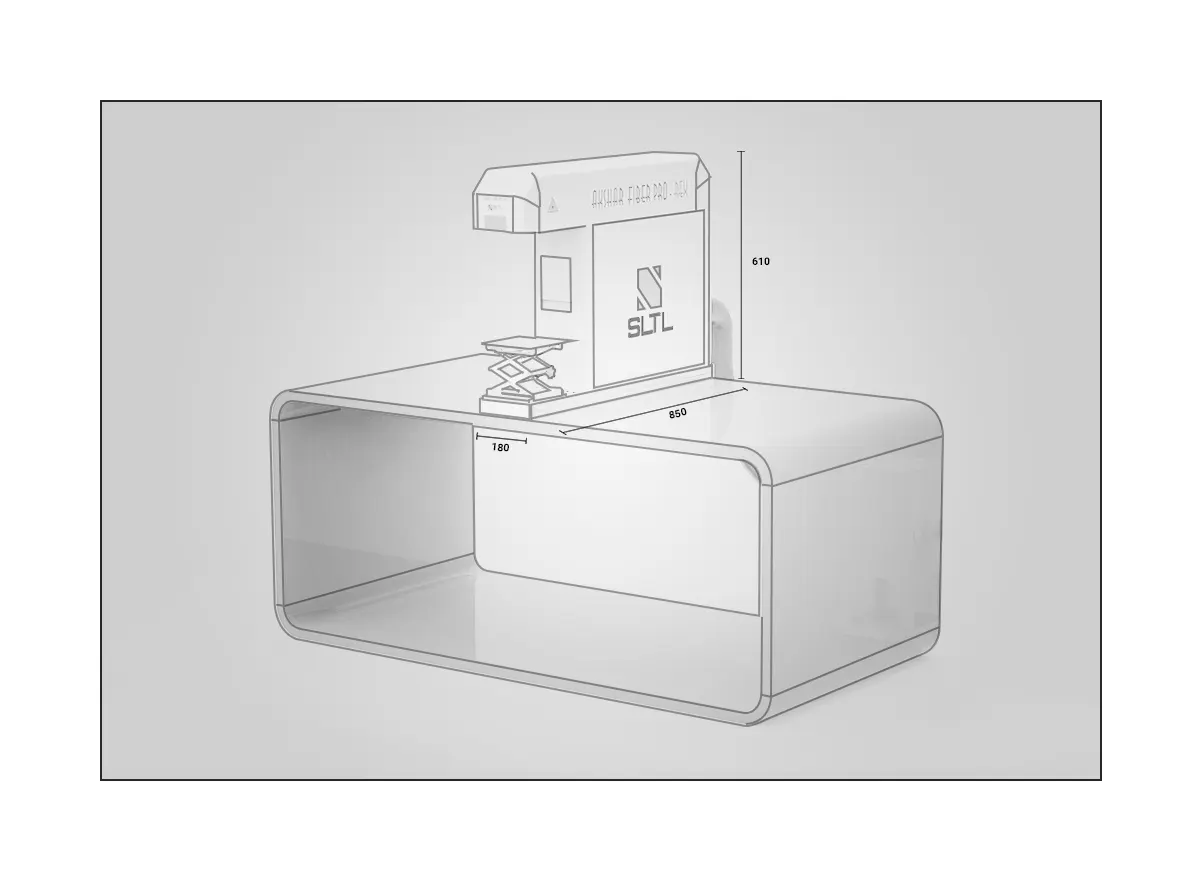

Machine Dimension
L x B X H =  850 x 180 x 610 mm

Machine Weight
45 Kg
SPEC SHEET
  • Para matrix & Para Vault - Para matrix helps in determining the best laser marking result on any given material. In this , the operator evaluates the Para matrix and selects the best one. Then laser parameters are fetched by the software for that particular option. This feature helps even those who have a very less knowledge about laser marking machine operation. A virtual vault is created for storing the best laser marking parameters of previously marked materials.
  • Adjustable Height - Being an industrial machine accommodating critical components with varying sizes, the focal point of Laser can be precisely adjusted with the up and down movement of the bed.

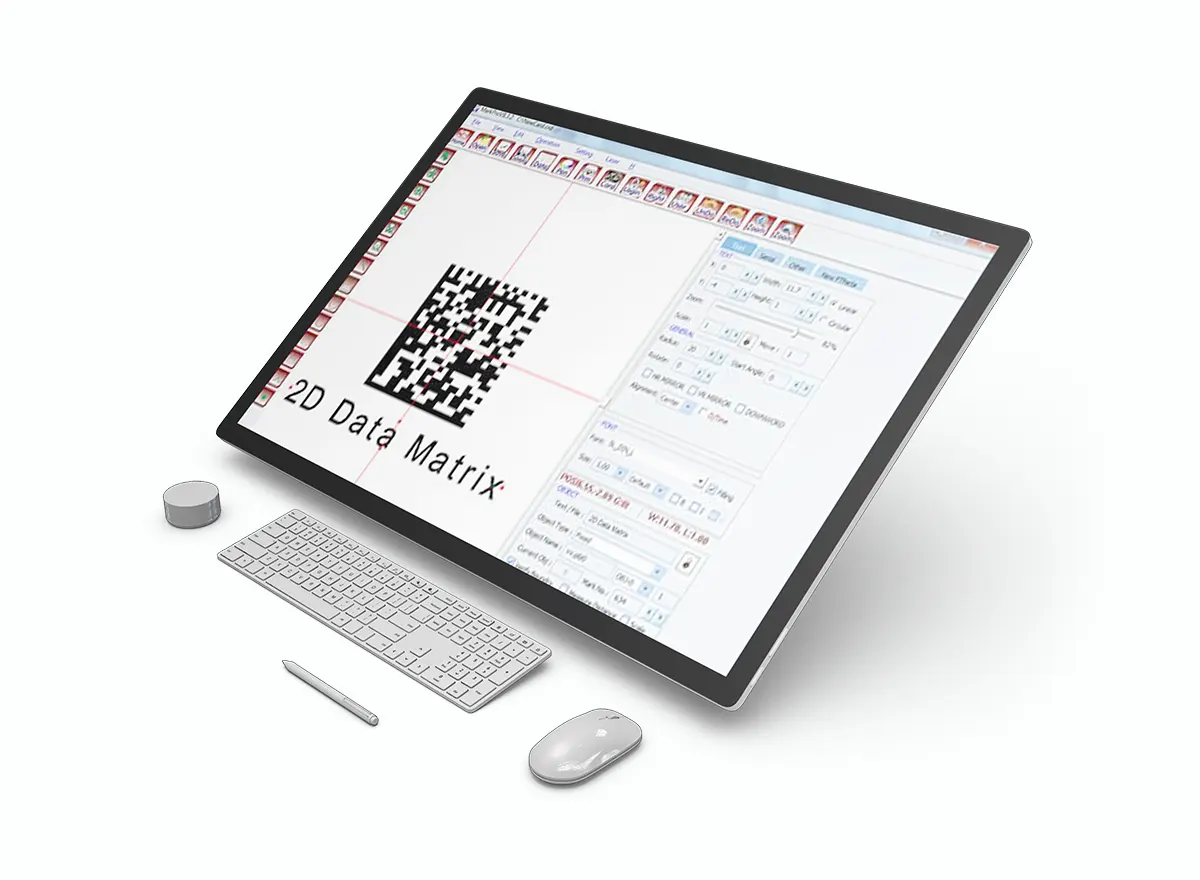

  • Intuitive & High Performance Software For Laser Marking - High Performance software application  that extends a smooth and a fully automatic  production flow. Rex’s  application are versatile, adaptable & easy to handle, our user interfaces  for engraving & marking,  which features operations,  that are user friendly, flexible & traceable.

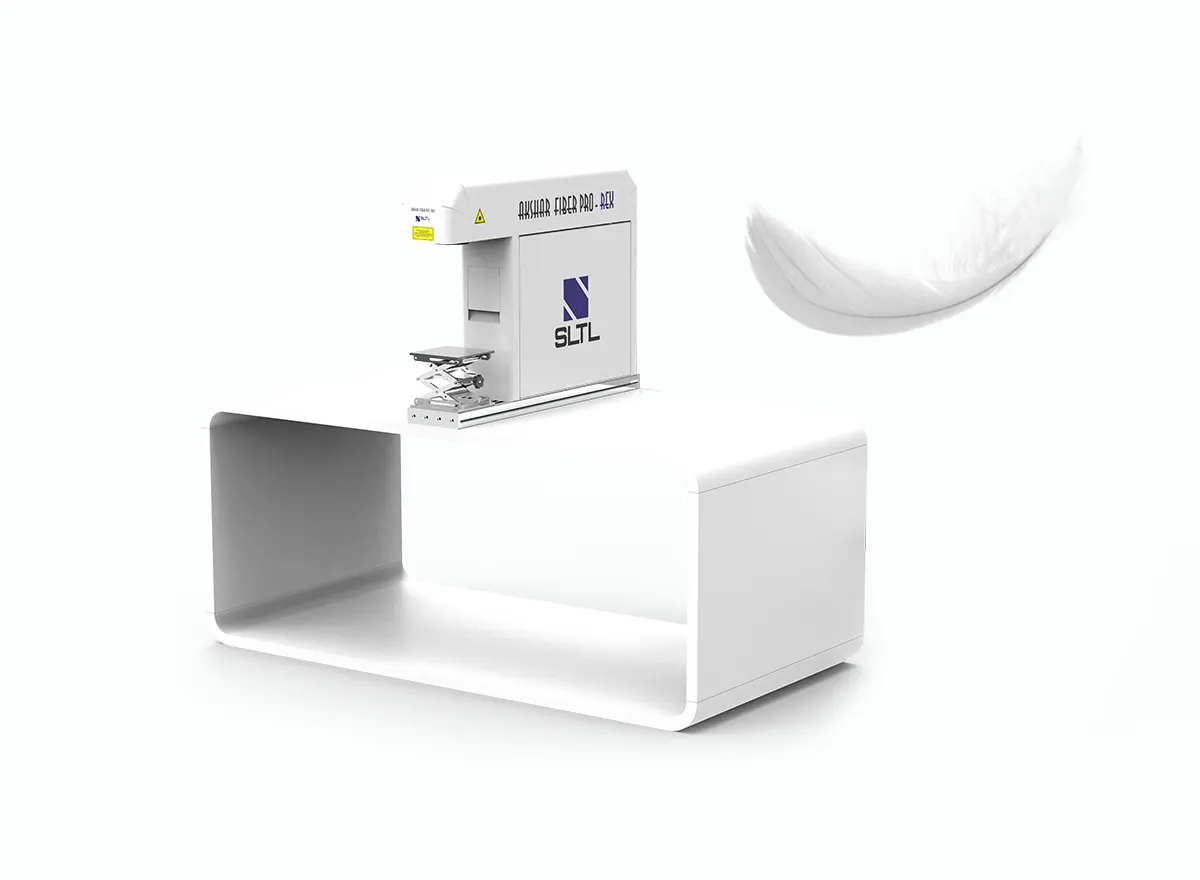

  • Efficiency at Best - REX is marking machine that portrays supreme execution on many types of objects and metal. It is designed to be very fast. With its technology, the content can be fast tracked and carved It consumes considerably less energy than even regular refrigerators.. Even though it consumes less energy, this laser marking system delivers the best result and thus proving itself efficient in class.
