SLTL Diode Pumped Solid State Laser
SLTL Group one of the leading manufacturers of laser solutions develops compact diode-pumped solid-state laser products. The Group’s prolific portfolio of solid-state diode lasers includes IR (infrared), UV (ultraviolet), Green laser, Violet laser, Blue laser, and Red laser systems.
The diversified lasers (Nd: YAG, Nd: YLF, Nd: YVO4, and Second harmonic generation (SHG), third harmonic generation (THG), Fourth harmonic generation (FHG) of YAG, YLF and YVO4) are functional in both Continuous wave and Q-switched pulsed output. These laser systems are extensively utilized for research & development as well as in industrial instrumentation applications viz. Non-linear optics, photo-acoustic tomography, Diamond marking, scribing, cutting, holography, biomedical, fluorescence, neuroscience tools, interferometry and material processing and fiber communication.

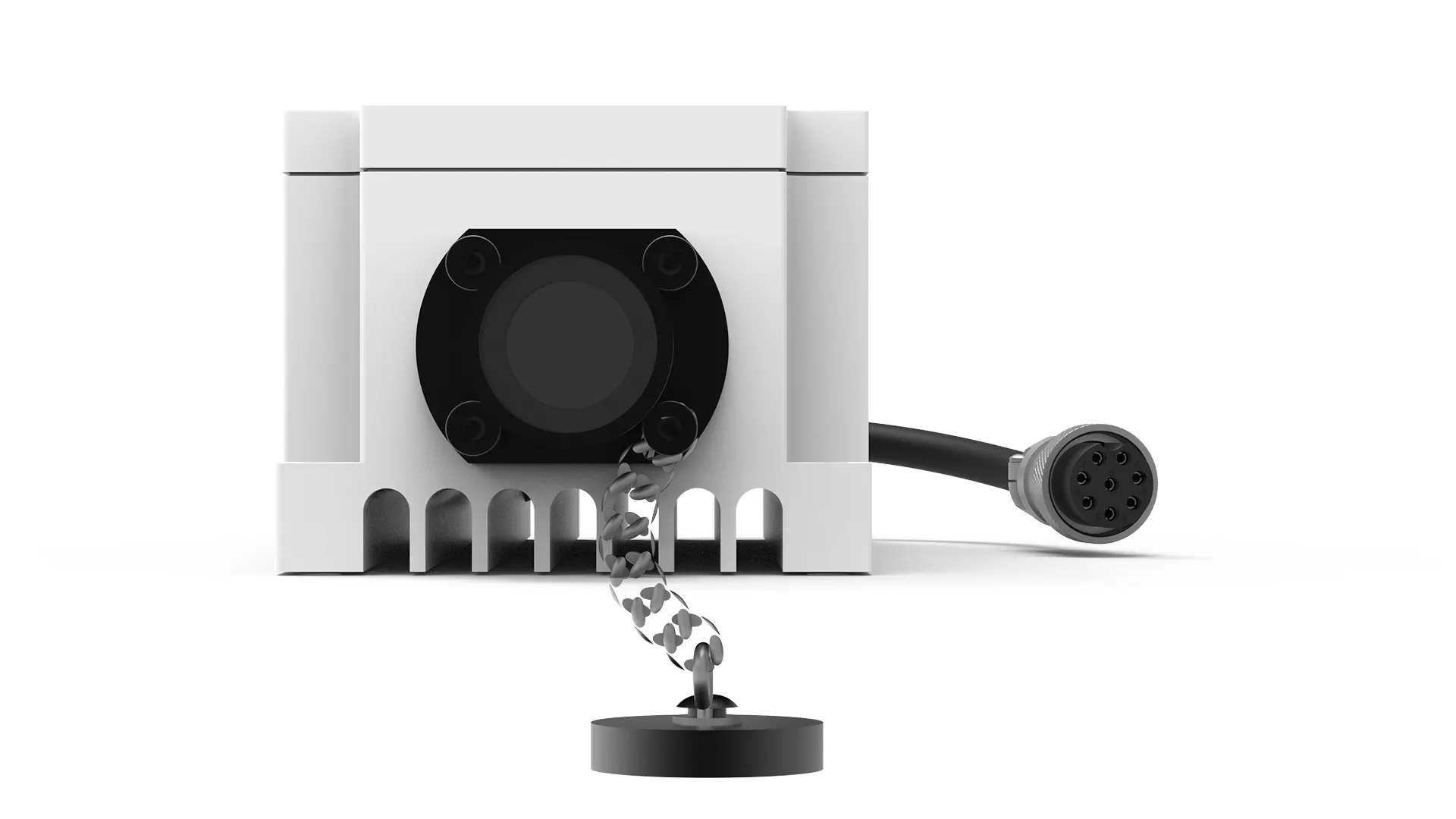

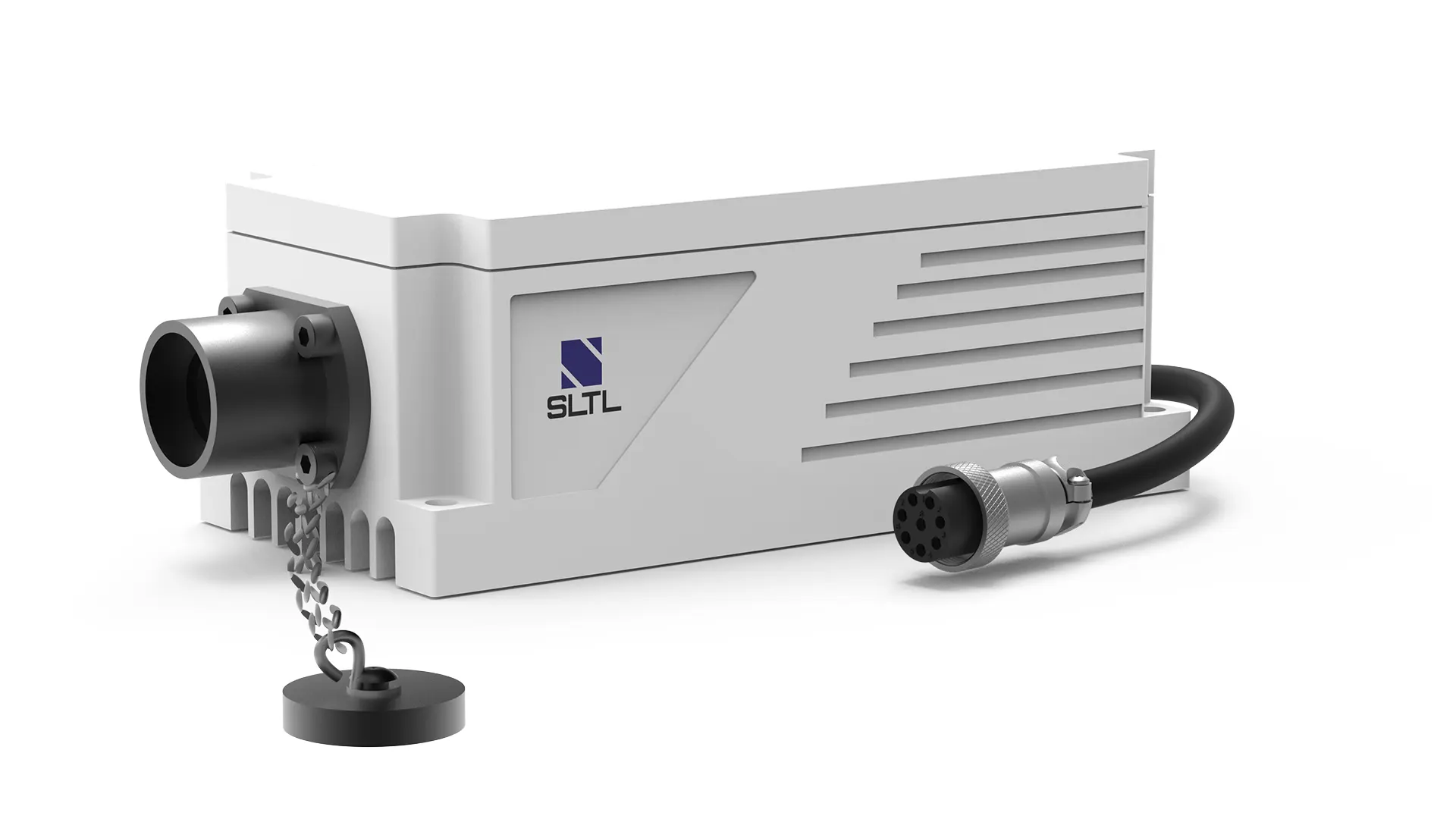

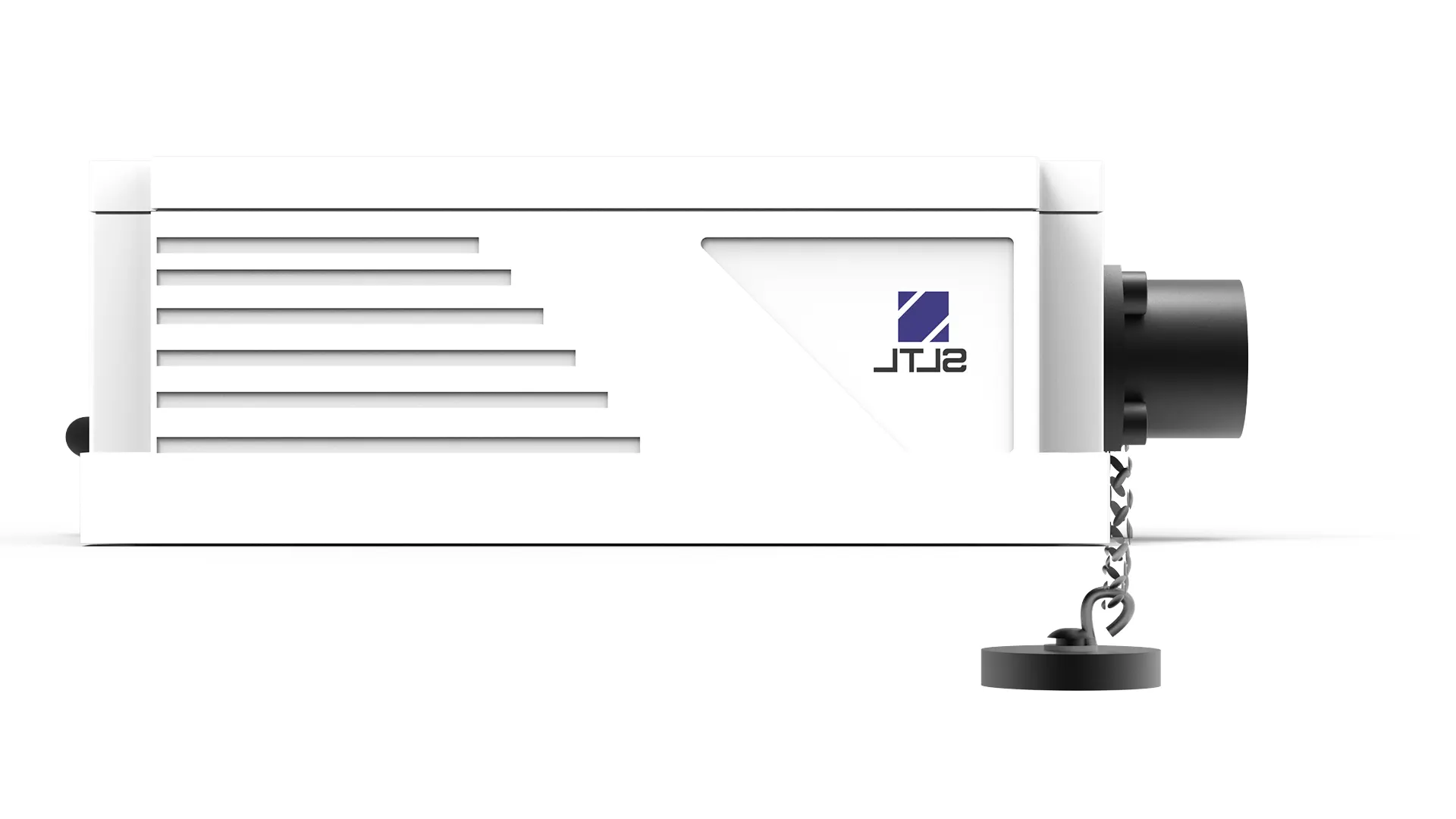

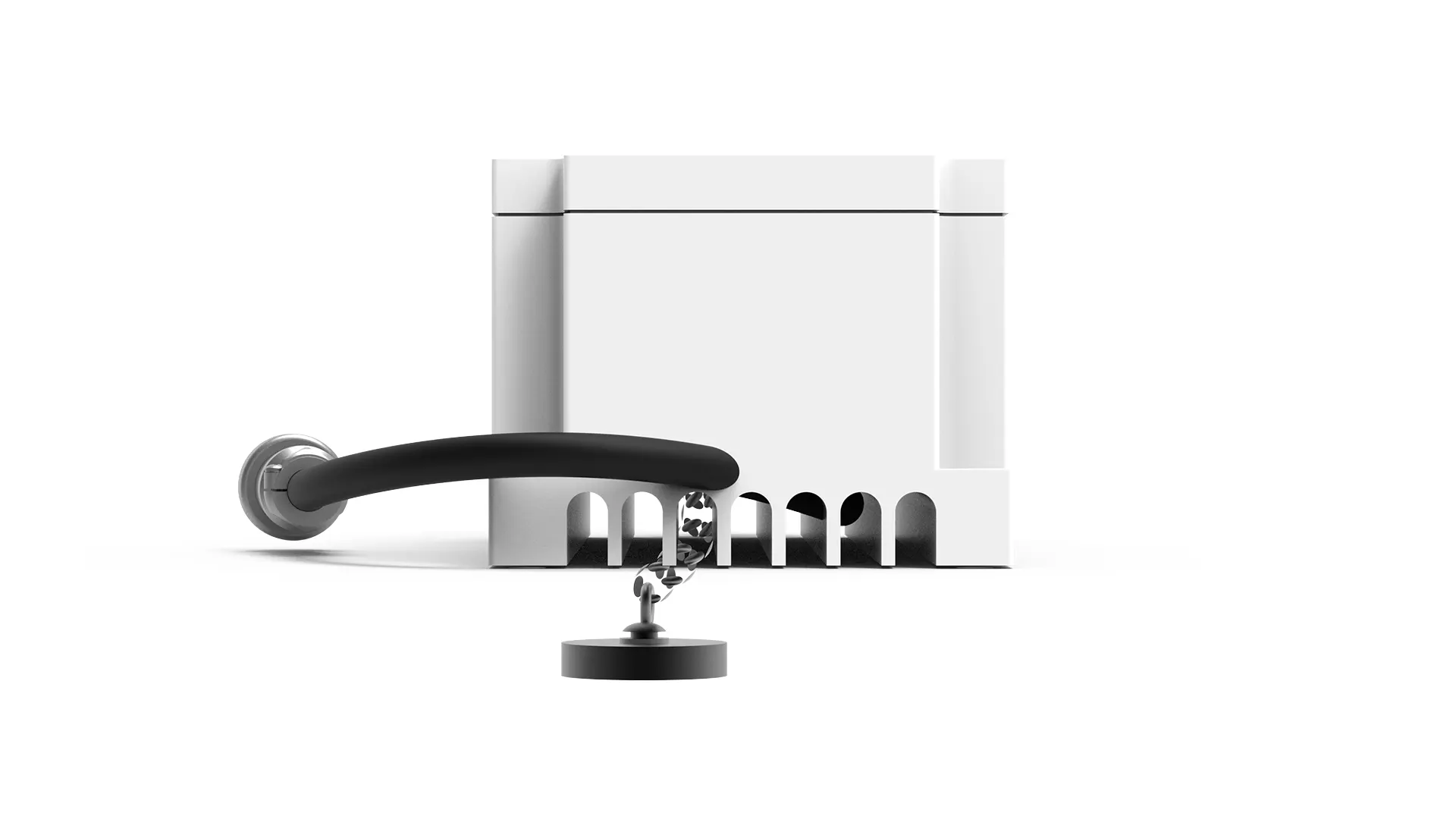

| Model | LD PUMPED Q-SWITCHED IR LASER |
|---|---|
| Operating Mode | Pulsed – 1KHz |
| Central Wavelength | 1064 ± 1nm |
| Transverse Mode | TEMoo |
| Power Stability (rms,Over 4 hrs) | <2% |
| Beam diameter at Aperture | 1.5 mm |
| Beam Divergence angle | <1.8 mrad |
| M² Factor | < 1.2 |
| Warm up time | <10min |
| Pulse Energy | ≥ 70 µjoule @ 1KHz |
| Pulse Duration | 10nsec |
| Rep Rate | 1 KHz |
| Operating Temperature | 10 ~ 35° C |
| Power Supply | 220VAC, 50 Hz SLTL-PSU |
| Aiming Laser for IR Beam | 5mw @ 650nm |
| Heat Sink mounted | |
| Expected Lifetime | >10000 hrs |
| Warranty | 1 year |

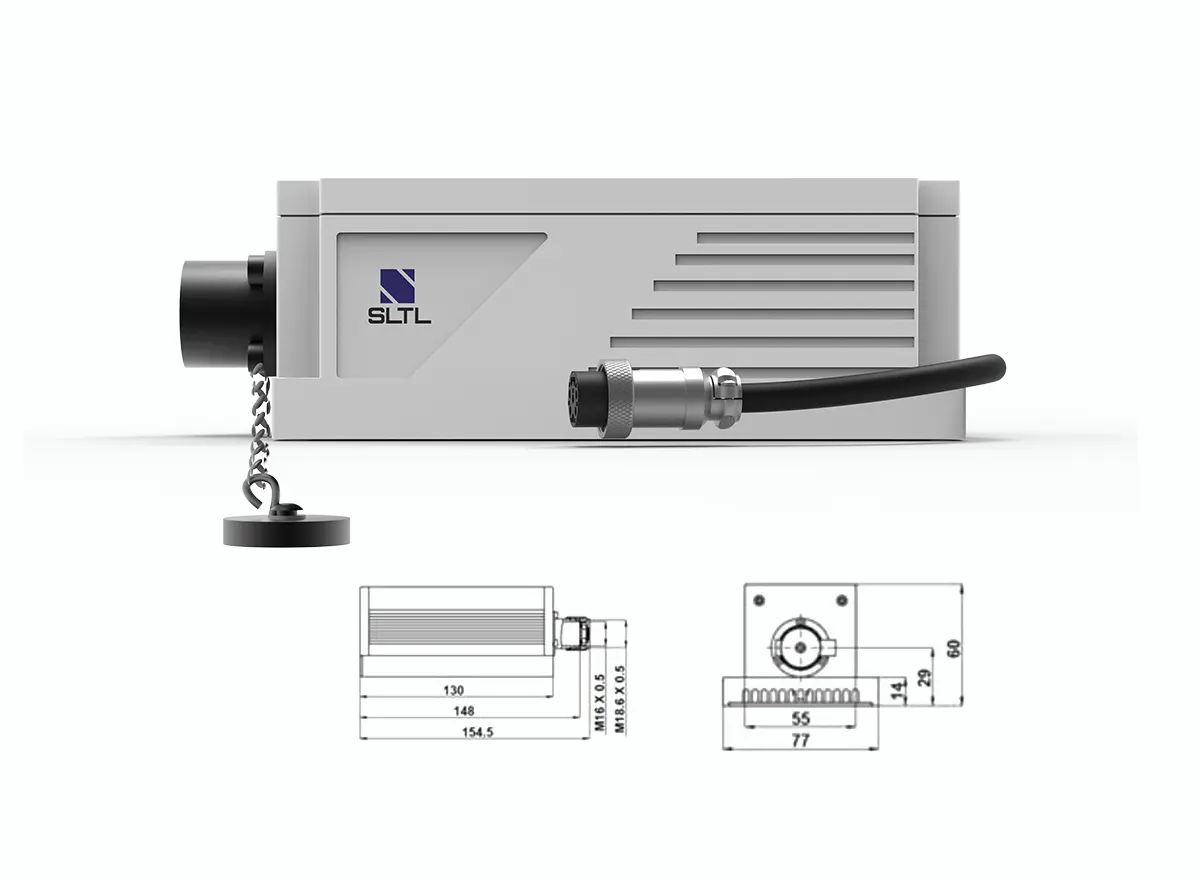

Key Features of this product
Compact in Size
Excellent Reliability
High peak power
High repetition rate
Nanosecond Pulse Duration
Magnificent Power Stability
TEMoo mode
High Beam Quality M²
Harmonic generations: By frequency doubling (266 nm & 355 nm generation)
