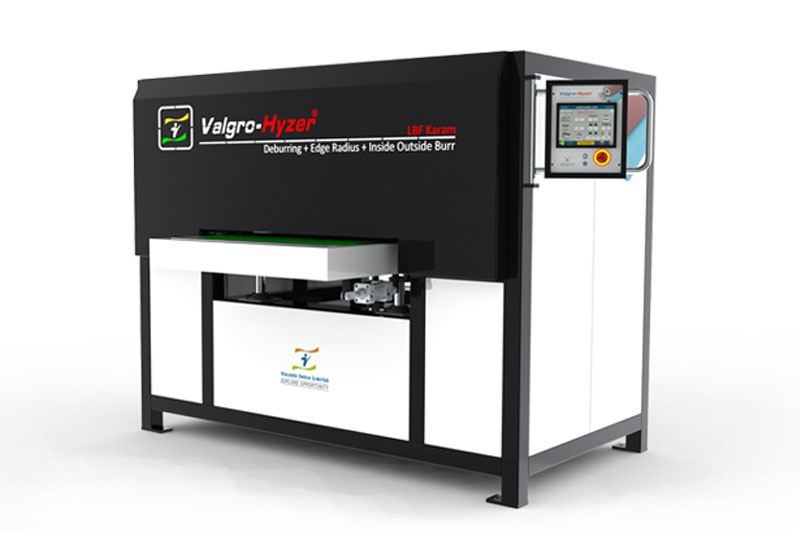

VALGRO LBF KARAM SERIES DEBURRING + EDGE ROUND
The Valgro LBF Karam Series can be used for plasma and laser cut flat parts for various applications such as deburring, and edge rounding. Valgro Karam series is available in various configurations including Belt + Brush, .
VALGRO long belt finishing machines have a flexible abrasive belt that enables finishing on flat surfaces of big dimensions. VALGRO-LBF KARAM machine is ideal for Hot and Cold rolled laser cut parts deburring and edge rounding.
| Model KARAM | LBF32-BR | LBF32-BRR | LBF32-BDD | LBF50-BRR | LBF50-BDD | |
|---|---|---|---|---|---|---|

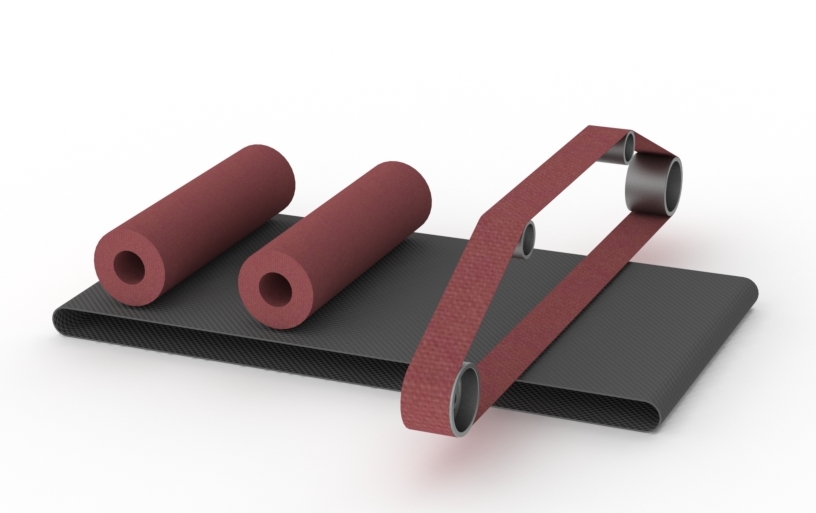

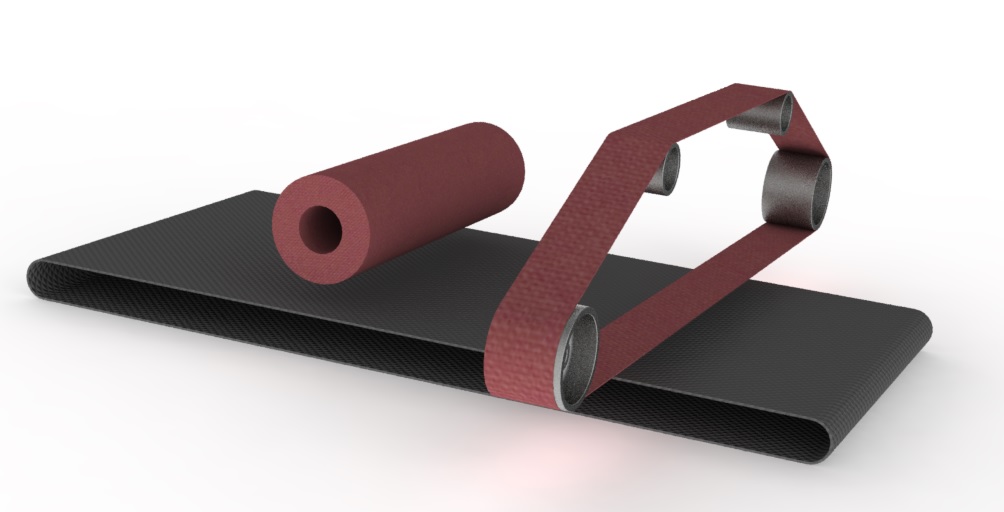

| Head Type Belt / Roller / Disc | B + R | B + R + R | B + D + D | B + R + R | B + D + D | |
| Work Surface | Top Side | Top Side | Top Side | Top Side | Top Side | |
| Process: Wet / Dry | Dry | Dry | Dry | Dry | Dry | |
| Work head | 2 | 3 | 3 | 3 | 3 | |
| Application | Deburring + Edge Rounding | Deburring + Edge Rounding | Deburring + Edge Rounding | Deburring + Edge Rounding | Deburring + Edge Rounding | |
| Finish Achieved | - | - | - | - | - | |
| Burr Qualification | Class 1,2,3 | Class 1,2,3 | Class 1,2,3 | Class 1,2,3 | Class 1,2,3 | |
| Type of Material | Carbon steel | Carbon steel | Carbon steel | Carbon steel | Carbon steel | |
| Min. Max Width | 50-800 | 50-800 | 50-800 | 50-1250 | 50-1250 | |
| Min. Length | 100 | 100 | 100 | 100 | 100 | |
| Min. Max Thickness | 3-100 | 3-100 | 3-100 | 3-100 | 3-100 | |
| Weight of capacity | 100kg | 100kg | 100kg | 200kg | 200kg | |
| Abrasive Belt width | 125 | 125 | 125 | 125 | 125 | |
| Abrasive Belt Size | - | - | - | - | - | |
| Roller Brush Diameter | 225 | 225 | - | 225 | - | |
| Disc Brush Diameter | - | - | 200 | - | 200 | |
| Brush Action R = Rotate O = Oscillate | R + O | R + O | R + O | R + O | R + O | |
| Conveyor Type R= Roller / B = Belt | Belt | Belt | Belt | Belt | Belt | |
| Conveyor speed MPM Min / Max | 0.5 - 10 | 0.5 - 10 | 0.5 - 10 | 0.5 - 10 | 0.5 - 10 | |
| Dust Extraction Model No | DCS-3 | DCS-3 | DCS-3 | DCS-5 | DCS-5 | |
| Electrical parameters | The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection. | |||||
Features

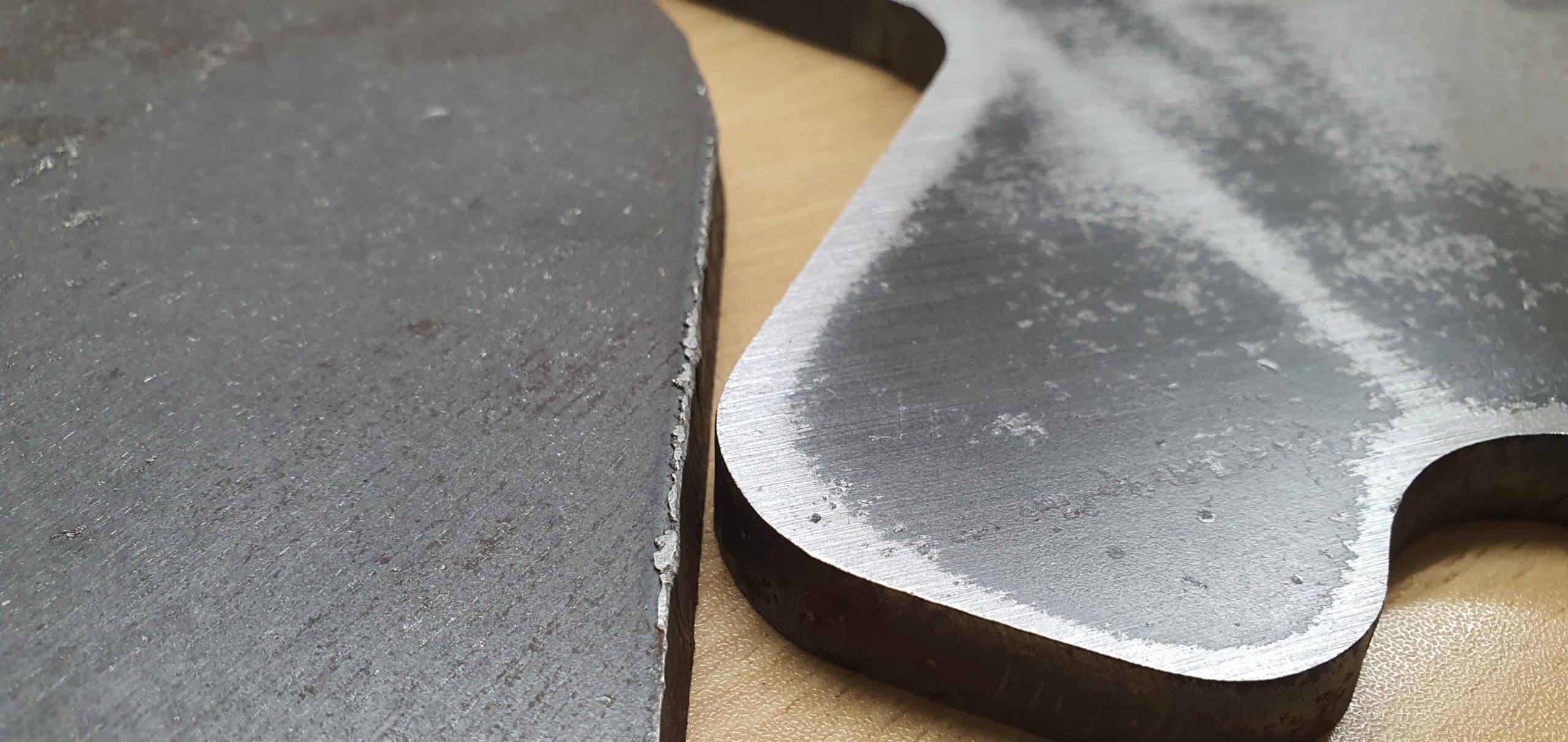

- Deburring and edge rounding of parts up to 50 mm material thickness
- Save up to 60% operational and labor costs
- Removal of spots on the sheet metal surface
- Processing front sides of the parts
- Edge rounding of interior and exterior contours at one time
- Dry eco-friendly operations
- Improved work environment – Reduction of dust, dirt, and noise
- Can be individually adjusted or turned on and off electrically
- Maximum productivity while maintaining machining quality
- Guarantees optimum tool utilization over the entire working width
- Faster and simpler tool change within just a few minutes
- Modular and compact in modern machine design – smaller footprint
Advantages to manual treatment
- Significantly higher productivity combined with superior part quality
- Consistent quality over the entire production run, versus scratches and divots produced by manual side grinders
- Avoid Unhealthy operation, Compared to the operation with a side grinder your employees
- You do not have to suffer under flying sparks, dust, dirt, or noise
- No physical strain for your employees caused by vibration or unhealthy posture
Applications
- Panel builder
- Sheet metal fabricator
- Automobiles
- Railways
- Instrumentation
- Laser cut shop
