Valgro De-Slagger Series | G&W Machinery

VALGRO DE-SLAGGER SERIES SLAG + DROSS REMOVAL

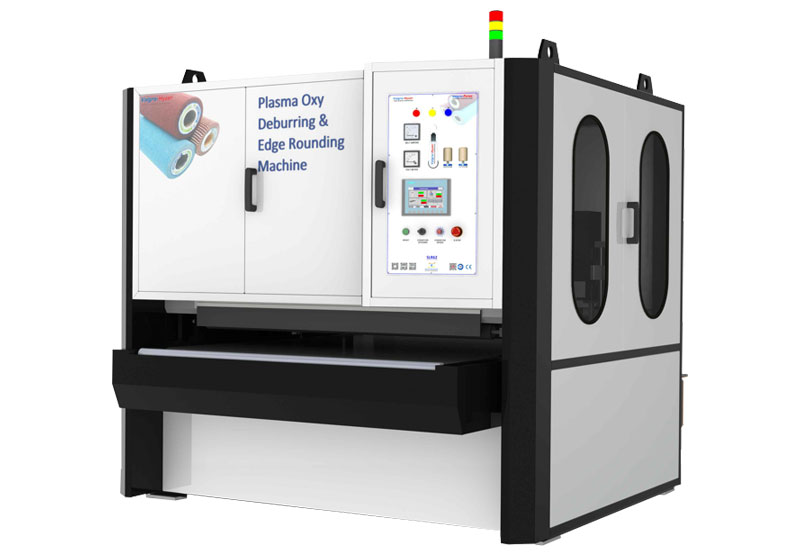

Valgro-De-Slagger Series Machines are perfect for removing slag and dross from plasma and gas cut components, as well as replacing chipping and manual grinding operations. Valgro India sets standards in revolutionary sheet metal processing with highly effective methods. It is perfect for two-sided deburring and edge rounding of punched, laser, and high-definition plasma cut workpieces since it requires just one work procedure. It efficiently eliminates plasma arc, saving up to 60% of operational expenses.

Model
SLR 24-3
SLR 24-4
SLR 50-3
SLR 50-4
SLR 62-4
Head Type
Belt / Roller Brush /
Disc Brush
D + B + B
D + B + B + D
D + B + B
D + B + B + D
D + B + B + D
Work Surface
Top Side
Top Side
Top Side
Top Side
Top Side
Work Head
3
4
3
4
4
Process: Wet / Dry
Dry
Dry
Dry
Dry
Dry
Application
Slug / Dross Removal + Sanding + Deburring + Edge Rounding
Finish Achieved
-
-
-
-
-
Burr Classification
Class 4 & 5
Class 4 & 5
Class 4 & 5
Class 4 & 5
Class 4 & 5
Max Width
600
600
1250
1250
1550
Min. Length
100
100
100
100
100
Min. Max Thickness
3 to 100
3 to 100
3 to 100
3 to 100
3 to 100
Weight of capacity
-kg
100kg
100kg
300kg
300kg
500kg
Drum Diameter
150
180
150
180
180
Brush Diameter
150 / 180 / 200
150 / 180 / 200
150 / 180 / 200
150 / 180 / 200
150 / 180 / 200
Abrasive Belt Size
650mm x 2200mm
650mm x 2200mm
1300mm x 2200mm
1300mm x 2200mm
1650mm x 2200mm
Brush Action
Rotate / Oscilate
R + O
R + O
R + O
R + O
R + O
Conveyor Type
R=Roller / B=Belt
Belt
Belt
Belt
Belt
Belt
Conveyor Bed
Magnate
Magnate
Magnate
Magnate
Magnate
Conveyor Speed
Min / Max - MPM
0.5 - 10
0.5 - 10
0.5 - 10
0.5 - 10
0.5 - 10
Machine Weight
1800kg
2500kg
2500kg
3500kg
4200kg
Dust Collector Suggestion
DCS-5 Auto
DCS-5 Auto
DCS-5 Auto
DCS-5 Auto
DCS-5 Auto
Electrical parameters
The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection.
  • Carbon steel slag/dross removed in a single pass
  • Deburring and Edge radius on laser-cut component
  • Grinding and calibration with many heads
  • Multihead deburring and Edge rounding
  • Strong and high-tech System
  • Wet dust extraction system
  • Stations with adjustable pressure
  • Belt/roller conveyor speed adjust
  • Emergency alarm
  • Conveyor emergency reverse
  • No chipping or power tool use.
  • 10-time Faster job
  • Reduce manpower with uniform slag removal
  • Simple and easy brush replacement
